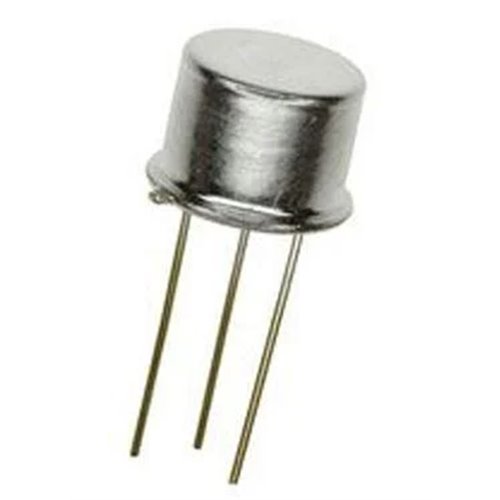

BC141
Type Designator: BC141-10
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 3.7 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 60 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 50 MHz
Collector Capacitance (Cc): 25 pF
Forward Current Transfer Ratio (hFE), MIN: 63
Noise Figure, dB: -
