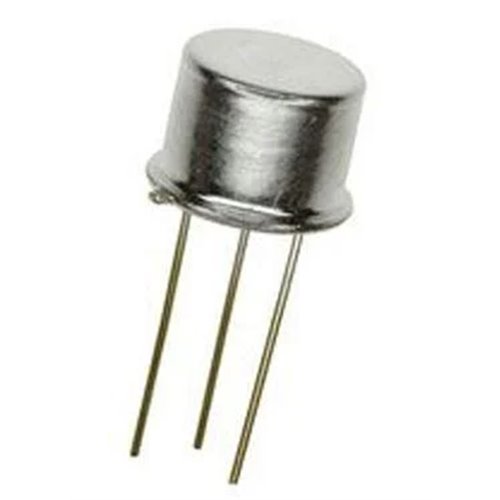

BC160
Type Designator: BC160
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 3.2 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 40 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 50 MHz
Collector Capacitance (Cc): 30 pF
Forward Current Transfer Ratio (hFE), MIN: 40
Noise Figure, dB: -
